1.Connect with wire rope, open spelter socket casting with wire rope.
2.Termination efficiency 100% of wire rope breaking load.
3.Open Spelter Socket applied in the end of wire rope.
4.Type: Socket + C shackle + Swivel socket + Chain and so on.
5.Fast replacement speed to ensure the best safety performance and economic benefits.

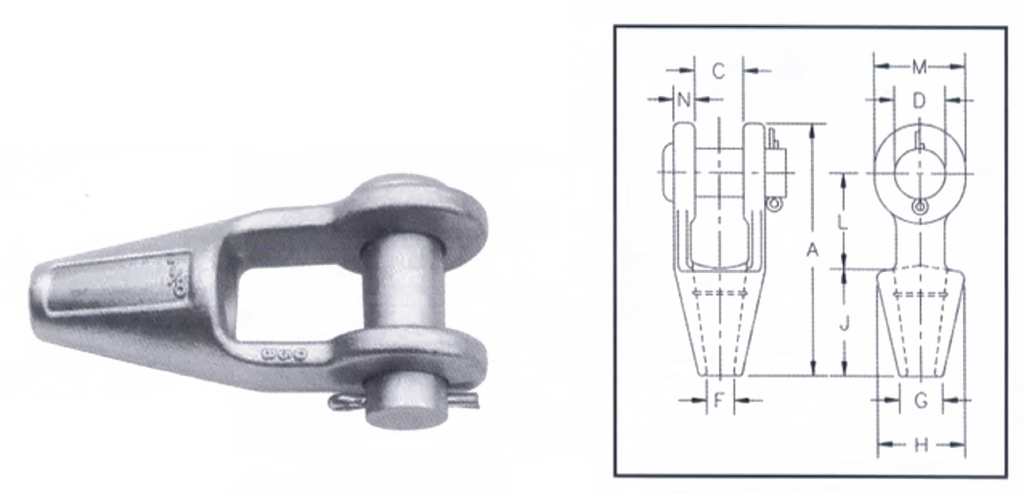

| tem No. | Ultimate load | Nominal size | A | C | D | F | G | H | J | L | M | N | Weight | |
| (dia of rope) | ||||||||||||||
| tons | in | mm | mm | kg | ||||||||||
| GRO416-1 | 4.5 | 1/4 | 6-7 | 116 | 19.1 | 17.5 | 9.65 | 17.5 | 39.6 | 57 | 39.6 | 33.3 | 9.1 | 0.5 |
| GRO416-2 | 12 | 5/16 – 3/8 | 8-9 | 123 | 20.6 | 20.6 | 12.7 | 20.6 | 42.9 | 57 | 44.5 | 38.1 | 11.2 | 0.59 |
| GRO416-3 | 20 | 7/16 – 1/2 | 11-12 | 141 | 25.4 | 25.4 | 14.2 | 23.9 | 47.8 | 63.5 | 51 | 47.8 | 12.7 | 1.02 |
| GRO416-4 | 27 | 9/16 – 5/8 | 14-16 | 171 | 31.8 | 30.2 | 17.5 | 28.7 | 57 | 76 | 63.5 | 57 | 14.2 | 1.863 |
| GRO416-5 | 43 | 3/4 | 18 | 202 | 38.1 | 35.1 | 20.6 | 31.8 | 66.5 | 89 | 76 | 66.5 | 15.7 | 2.64 |
| GRO416-6 | 55 | 7/8 | 20-22 | 235 | 44.5 | 41.4 | 23.9 | 38.1 | 82.5 | 102 | 89 | 79.5 | 20.3 | 4.438 |
| GRO416-7 | 78 | 1 | 24-26 | 268 | 51 | 51 | 28.7 | 44.5 | 95.5 | 114 | 102 | 95.5 | 22.4 | 7.03 |
| GRO416-8 | 92 | 1-1/8 | 28-30 | 300 | 57 | 57 | 31.8 | 51 | 105 | 127 | 117 | 105 | 25.4 | 9.75 |
| GRO416-9 | 136 | 1-1/4 – 1 3/8 | 32-35 | 335 | 63.5 | 63.5 | 38.1 | 57 | 121 | 140 | 127 | 121 | 28.7 | 14.1 |
| GRO416-10 | 170 | 1-1/2 | 38 | 384 | 76 | 70 | 41.4 | 70 | 133 | 152 | 152 | 137 | 30.2 | 21.4 |
| GRO416-11 | 188 | 1-5/8 | 40-42 | 413 | 76 | 76 | 44.5 | 76 | 140 | 165 | 165 | 146 | 33.3 | 24.9 |
| GRO416-12 | 268 | 1-3/4 – 1 7/8 | 44-48 | 464 | 89 | 89 | 51 | 79.5 | 162 | 191 | 178 | 165 | 39.6 | 37.2 |
| GRO416-13 | 291 | 2-2-1/8 | 50-54 | 546 | 102 | 95.5 | 57.2 | 95.5 | 187 | 216 | 229 | 178 | 46 | 59 |
| GRO416-14 | 360 | 2 1/4 – 2 3/8 | 56-60 | 597 | 114 | 108 | 63.5 | 102 | 210 | 229 | 254 | 197 | 54 | 76 |
| GRO416-15 | 424 | 2-1/2 – 2 5/8 | 64-67 | 648 | 127 | 121 | 73 | 114 | 235 | 248 | 274 | 216 | 60.5 | 114 |
| GRO416-16 | 511 | 2-3/4 – 2 7/8 | 70-73 | 692 | 133 | 127 | 79 | 124 | 267 | 279 | 279 | 229 | 73 | 143 |
| GRO416-17 | 563 | 3 – 3 1/8 | 75-80 | 737 | 146 | 133 | 86 | 133 | 282 | 305 | 287 | 241 | 76 | 172 |
| GRO416-18 | 722 | 3-1/4 – 3 3/8 | 82-86 | 784 | 159 | 140 | 92 | 146 | 302 | 330 | 300 | 254 | 79 | 197 |
| GRO416-19 | 779 | 3-1/2 – 3 5/8 | 88-92 | 845 | 171 | 152 | 98.5 | 165 | 314 | 356 | 318 | 274 | 82.5 | 255 |
| GRO416-20 | 875 | 3-3/4 – 4 | 94-102 | 921 | 191 | 178 | 108 | 184 | 346 | 381 | 343 | 318 | 89 | 355 |
